Arnasx 0 Posted November 17, 2010 Hello guys, I am new here and with CCTV installation. While clearing my garage i found one Visage Dome Camera VRDN550IR Right, i took the cover off and now i am stock, it does not have any connections coming out see pictures and you might help to fiddle things to the right way. http://img403.imageshack.us/img403/986/img0155pw.jpg http://img241.imageshack.us/img241/8214/img0157j.jpg http://img337.imageshack.us/img337/8461/img0158yf.jpg Hope someone can help me on this. Many thanks in advance Share this post Link to post Share on other sites

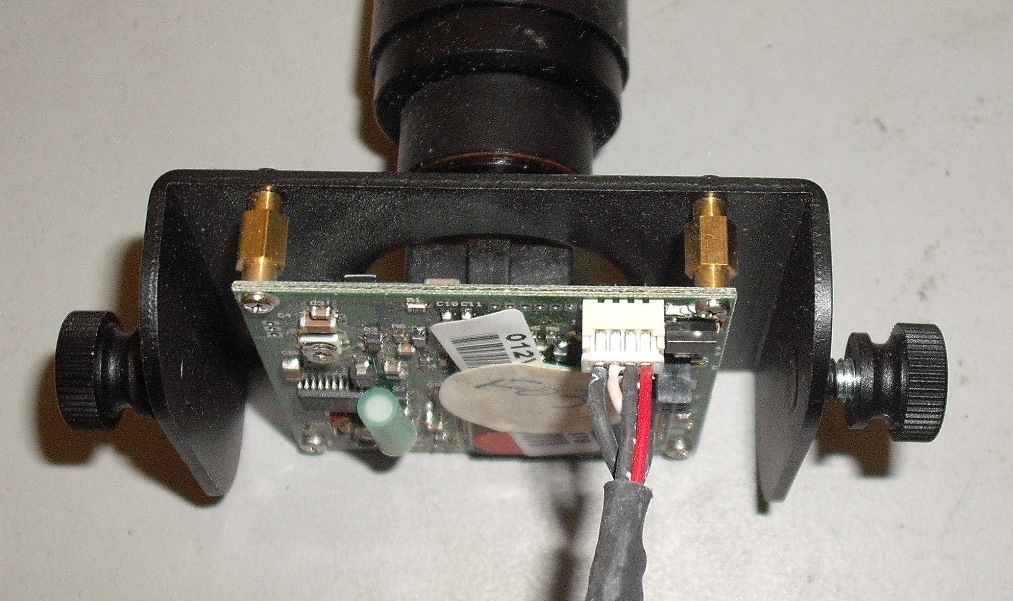

SEANHAWG 1 Posted November 18, 2010 I believe that 4 pin connection that you have the closeup on is the one that a little connector connects to and it has a video and power cable attached to it and on the other end is a BNC connector and power plug. You may be able to contact the manufacturer to see if you can get that wire. Or, if you want to do it the redneck way, you can find out the pin assignment for each pin and solder some wires to it and somehow make the wires stay connected. Here is what one of those connectors looks like connected to one of our Wren board cameras: I havent been able to find these on sale anywhere so if anyone knows, please let me know. Share this post Link to post Share on other sites
Arnasx 0 Posted November 19, 2010 Thanks SEANHAWG for very details answer, Does that mean that BNC connector runs video signals and power at the same time or it should be 2 different connectors? because all I can see in the connector that there are 4 contacts and nothing else? Confused Share this post Link to post Share on other sites
SEANHAWG 1 Posted November 20, 2010 Yes on the other end of that cable that you cannot see in the picture is a BNC connection AND a power connection. 2 seperate cables. 2 of the pins have to do with video and the other 2 have to do with power Share this post Link to post Share on other sites
