Please help me find the model

[catanil 0]

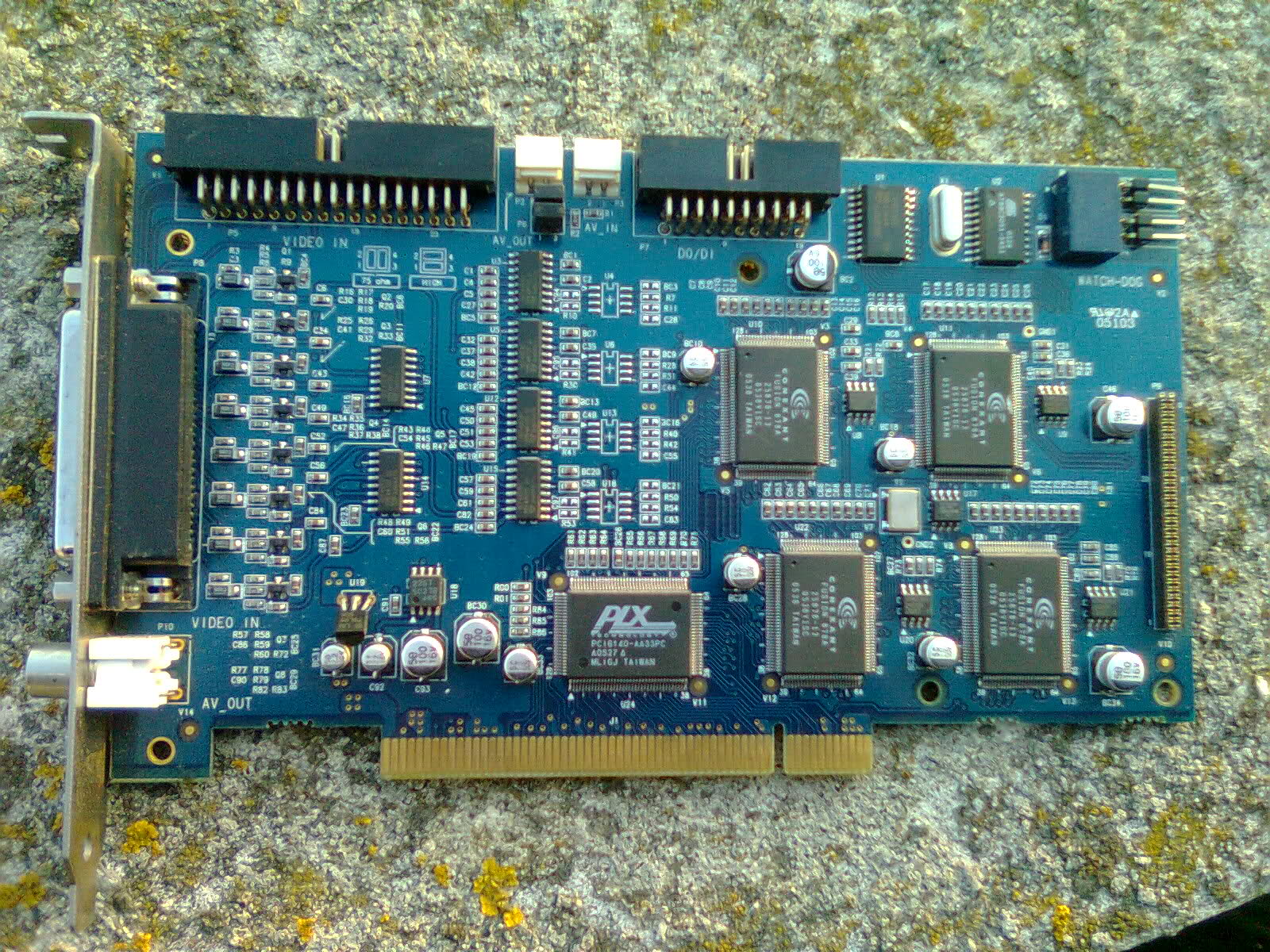

Hello everybody.I'm trying to find drivers and software for an old dvr system,with a PCI card,but I don't know the model of the card,I know just it has 16 channels,4 Conexant chips and one PLX PCI6140 and one cable for 16 cameras.Maybe you can help me,here is one picture of the pci card.

Thank you in advance.

[Soundy 1]

Is there an "FCC ID" number printed or silkscreened on the board anywhere?

[catanil 0]

There is only one number on the other side,I don't know if it's FCC ID or not.

The number is 7782cd88.

[catanil 0]

Anybody? I don't want the software for free,I will pay for it.Thank you.

[scjsmith 0]

That is an X-Vision card as supplied by Y3K CCTV - www.y3k.com you can download the drivers and software from here:



http://factory.y3k.com/



Software

PCDVRs

Internal Devices

XP4/16/32.... (goes on for a bit of all models)



downlaoad that file its drivers and software all in one package.



Install that and away you go



Happy CCTV'ing

[Faisal 0]

I cant find the drivers for the same card. any help can provided in this regard. Please. i tried the above link thats also not working anymore so i can download.

[Horizon 0]

Hi Faisal



You could try this link for the XP4/16/32 card: http://www.y3k.com/downloads/software/PCDVR%20Server%20Client%20and%20Drivers%202009.zip



If that software doesn't work, they have other software on their support pages:

http://www.y3k.com/article/68/downloads-software-firmware-models-a-m

http://www.y3k.com/article/81/downloads-software-firmware-models-n-z



It looks like a good company - they have tons of manuals and softeware available.
