viptajik 0 Posted April 13, 2011 I have bought a chaines PTZ camera unfortunately no one can install it there is 6 wires for Alarm so where it should connect ? anybody knows Share this post Link to post Share on other sites
SEANHAWG 1 Posted April 13, 2011 The 6 Wires are probably for direct control of the pan, tilt, and zoom if you wanted to use an encoder. There should be some RS-485 connections too. Are the wires not labeled? Without that you will have a hard time figuring out what does what. Share this post Link to post Share on other sites
viptajik 0 Posted April 14, 2011 i need help guys no one knows how ti fix this PTZ Share this post Link to post Share on other sites
ayalas 0 Posted April 14, 2011 What brand is that ptz. Pelco? Maybe a pic of the inside of the ptz would help. Share this post Link to post Share on other sites
SEANHAWG 1 Posted April 15, 2011 There should be a sticker wrapped around the cable that has 6 wires explaining what each wire does. Is that sticker there? Share this post Link to post Share on other sites
viptajik 0 Posted April 15, 2011 There should be a sticker wrapped around the cable that has 6 wires explaining what each wire does. Is that sticker there? there is sticker written color A color B like this and i don't know where it should be goes Share this post Link to post Share on other sites
SEANHAWG 1 Posted April 16, 2011 Post a picture of the sticker. Also look in the documentation to see if there is something to show what each color coded wire does. For example Green=Zoom, Grey = Iris, Blue= focus, etc. Look for something like this and post picture on here. I would be surprised to see if there isnt RS-485 connections on there. Usually A = + and B = -. But any pictures of the documentation explaining stuff like this would be helpful to us. Share this post Link to post Share on other sites
viptajik 0 Posted April 18, 2011 this the siticker if u have time to be online plz help me white:A1 Yellow: A2 Green: A3 Brown: A4 Blac: com Manuall is writen in chainies we cant understand it there is not any diagrms on that manual Share this post Link to post Share on other sites
SEANHAWG 1 Posted April 19, 2011 I am very sorry but that is not enough info for me to supply you with any sort of answer. After reviewing your photos again, I noticed that by the BNC connector there are 2 sets of wires. 1 set is probably for power and I assume the other set is for RS-485. Since they are both colored blue, that really doesnt help much at all. Shoot an email to the supplier and have them give you the color codes for the wires. Ask them which ones are for power and which ones are for RS-485 Share this post Link to post Share on other sites
Soundy 1 Posted April 19, 2011 I agree, there really isn't enough information provided. OP, Sean asked for a photo of the label, not a listing of what's on it. Ayalas asked for a photo of the inside of the camera to help identify it. People are willing to help you, but you have to help us by providing the information we ask for - all we see of the camera so far is a big white housing, and that tells us absolutely nothing. Share this post Link to post Share on other sites

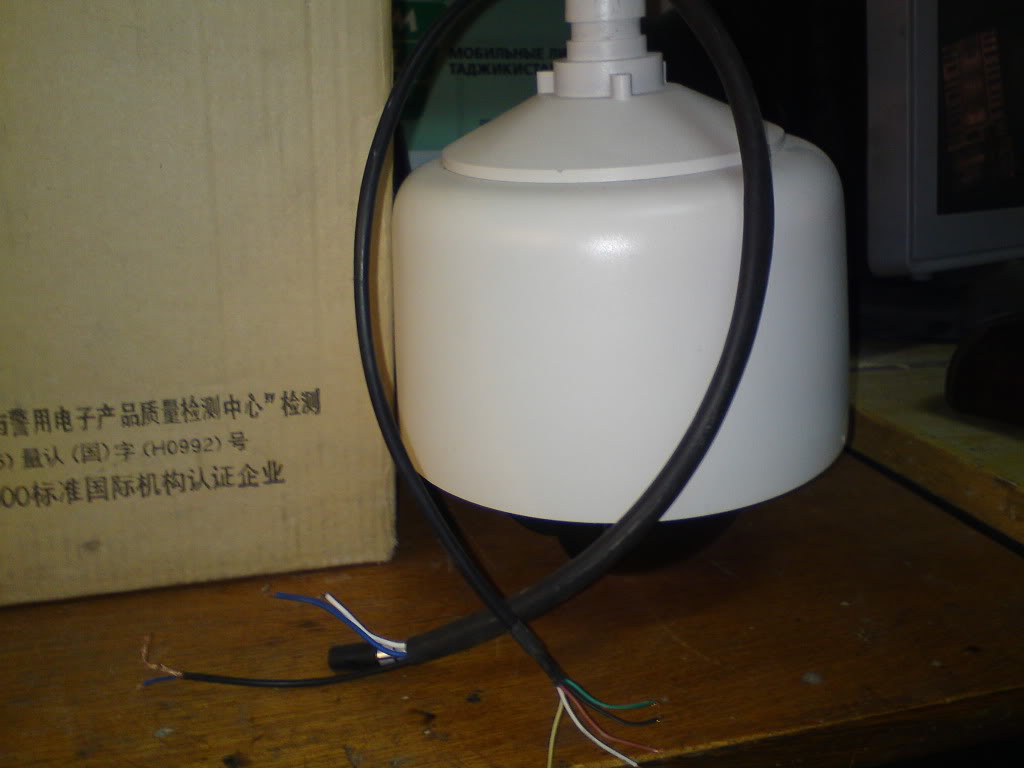

viptajik 0 Posted April 19, 2011 this photo should help you the problem is there is no any addresses about suppliers Share this post Link to post Share on other sites

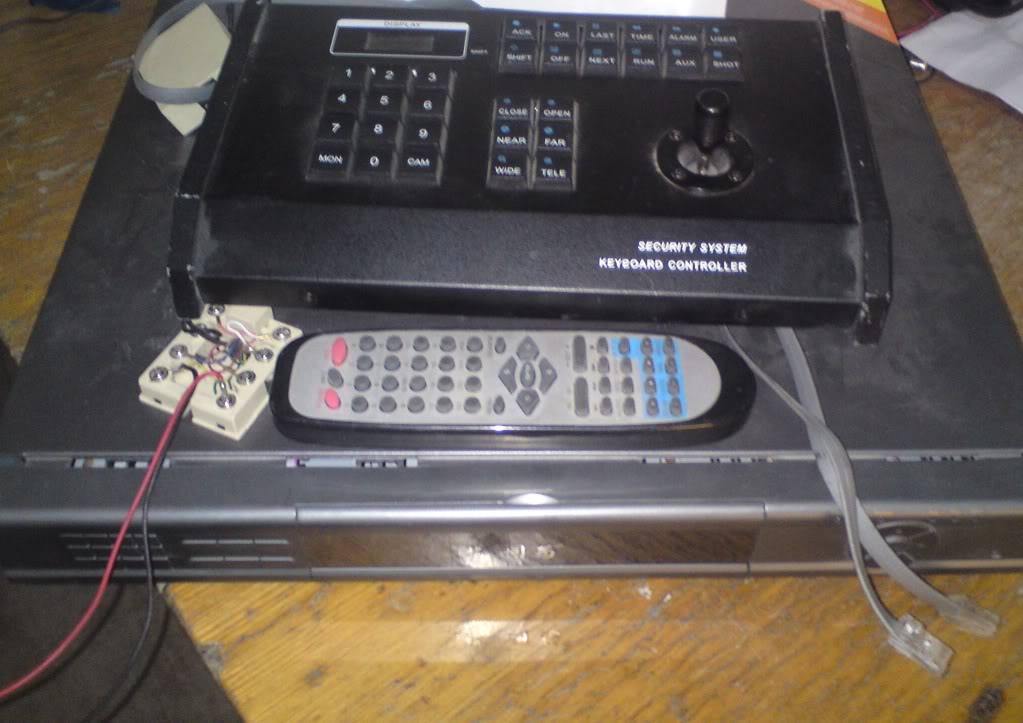

tomcctv 190 Posted April 19, 2011 this photo should help you the problem is there is no any addresses about suppliers Hi viptajik. you might be better getting someone in. the picture you have posted is not right. were you have BNC writen ..... that is your RS485 were you have rs485 ...... that is your power. and were you have rs485 see the thick wire .... that is your male BNC (you need to pull the rubber cover off) these are all the cables you need. the others are external alarm inputs. the RS 485 you need to connect to the little box (the one with the black red cable) that box is connected to your controller via telecom cable. BNC from camera to dvr and then you need power. to the last cable. do you know the power of your ptz. also set everything up on the floor first. as you need to set your protocols for your PTZ and controller to talk to each other. Share this post Link to post Share on other sites

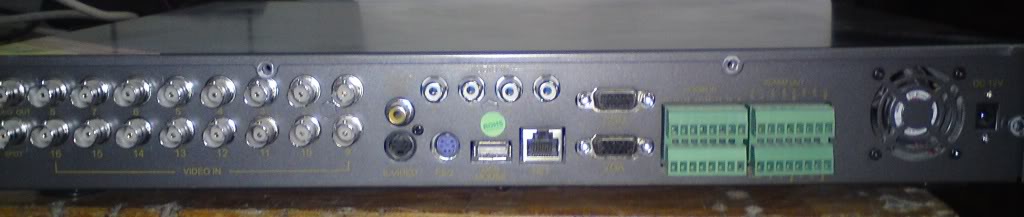

viptajik 0 Posted April 21, 2011 That is all i have Share this post Link to post Share on other sites
SEANHAWG 1 Posted April 21, 2011 I believe Tom just confirmed which set was power and which set was RS-485. The problem now is trying to figure out which protocol the PTZ is set to. If its chinese, those PTZ's almost always are set to Pelco-D, and its either 2400 or 9600 Baud rate, Either CAM ID of 000 or 001. But it could be something else too. Unfortunately, A PTZ is not a piece of equipment that you want to have without a clear set of instructions. As said before, you will need to contact the supplier to confirm what wire does what and what the protocol, baud rate, and CAM ID is. They are the people that can really help. We are just playing a guessing game here. Share this post Link to post Share on other sites
Soundy 1 Posted April 21, 2011 PTZs will often display the baud rate, ID number and protocol on-screen when they first power up... Share this post Link to post Share on other sites
viptajik 0 Posted April 22, 2011 Unfortunately I don't have the supplier contacts so I am vesting my time here to fix this **** As you said with gassing we can't fix it yeah I have to find someone but i am not sure anybody can do that because its chines PTZ camera Share this post Link to post Share on other sites
SEANHAWG 1 Posted April 22, 2011 Hello, You said you didn't know the manual in Chinese.I'm from China and know Chinese.You can send the manual in Chinese to me.I can translate it into English. My MSN:jack-zhu0221@hotmail.com " title="Applause" /> " title="Applause" /> " title="Applause" /> You could be really helpful on this forum at times!!!! Share this post Link to post Share on other sites
viptajik 0 Posted April 23, 2011 I believe Tom just confirmed which set was power and which set was RS-485. The problem now is trying to figure out which protocol the PTZ is set to. If its chinese, those PTZ's almost always are set to Pelco-D, and its either 2400 or 9600 Baud rate, Either CAM ID of 000 or 001. But it could be something else too. Unfortunately, A PTZ is not a piece of equipment that you want to have without a clear set of instructions. As said before, you will need to contact the supplier to confirm what wire does what and what the protocol, baud rate, and CAM ID is. They are the people that can really help. We are just playing a guessing game here. Thanks SEANHAWG this information helped me nut till i have problem in zooming and turning rounf Share this post Link to post Share on other sites
tomcctv 190 Posted April 23, 2011 I believe Tom just confirmed which set was power and which set was RS-485. The problem now is trying to figure out which protocol the PTZ is set to. If its chinese, those PTZ's almost always are set to Pelco-D, and its either 2400 or 9600 Baud rate, Either CAM ID of 000 or 001. But it could be something else too. Unfortunately, A PTZ is not a piece of equipment that you want to have without a clear set of instructions. As said before, you will need to contact the supplier to confirm what wire does what and what the protocol, baud rate, and CAM ID is. They are the people that can really help. We are just playing a guessing game here. Thanks SEANHAWG this information helped me nut till i have problem in zooming and turning rounf power supply is too small. what size are you using. Share this post Link to post Share on other sites
