Geovision GV800 + Zoneminder question

[stabias 0]

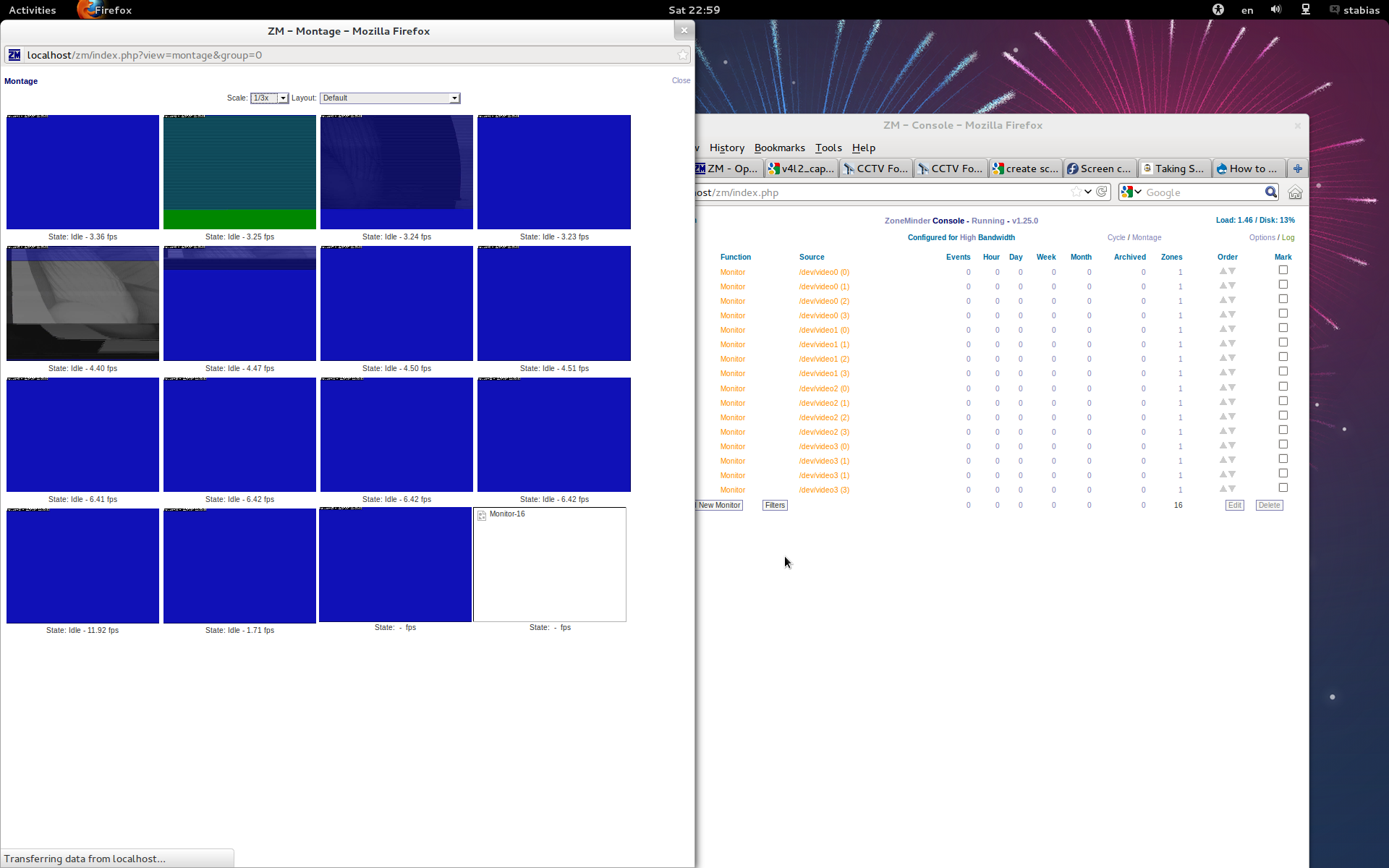

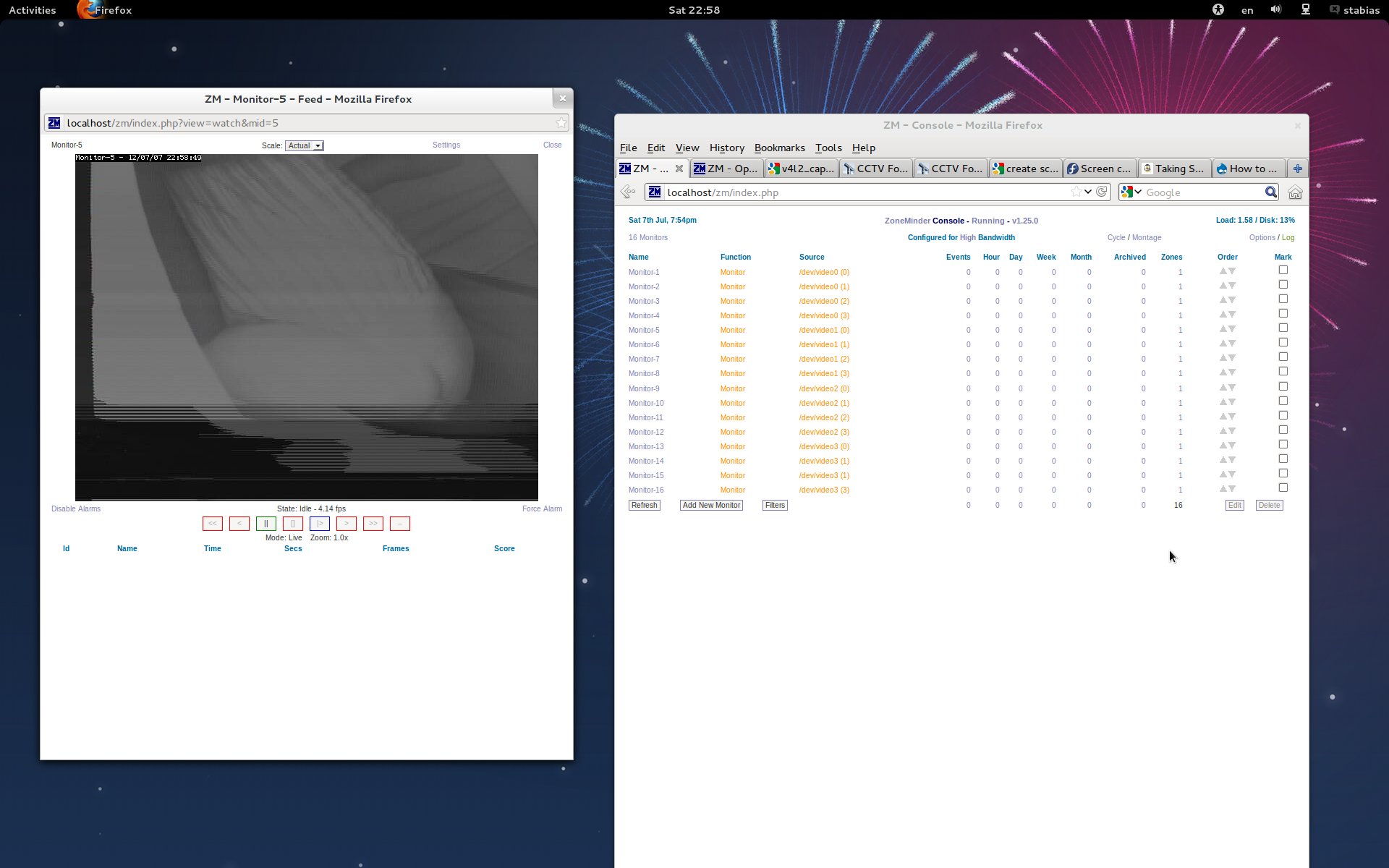

Hello. I use geovision GV-800 card in Fedora+ZoneMinder. When i plug camera i see strips on image and some jitter. Also some part of an image appears on other monitor. What should i do?

Thanks for help.

Sorry for my bad English

[patdpolishpower 0]

Have you gotten an answer yet?

I'm having the same issue.



I have narrowed it down to the fact that the GV-800 cards share the /dev/videoX streams.



If you remove monitors 5 through 16, I bet the first 4 will work. You can also change the setting in ZM under Options->Config and change the "V4L_MULTI_BUFFER" setting to a larger number. This will compensate for the image interlacing.



I got my images to be clear when I have them all set on NTSC, and YUV420 with the V4L_MULTI_BUFFER value greater than 4, however, I can only get channels 1-4. So I'm hoping that maybe you have some type of an answer, or someone else does.
