Termininating Cameras & Connections

[rkninc 0]

Hi.



Whats the proffered way to terminate connections for IP cameras and analog cameras with Baluns?





FOR IP:



Do you prefer to terminate connections from the camera to a patch panel?





Or is it better to terminate to an rj45 plug and connect the plug to POE switch?

FOR ANALOG:



How is advisable to terminate in large camera count applications (48+)



Thanks.

[the toss 0]

For large installations it's always going to be better to terminate on a patch panel for tidyness , cable management, flexibility of use and ease of maintenance

[GrouchoBoucho 0]

i'd terminate everything in a patch panel, whether ip or analog... then you can easily plug in whichever type of camera you want. just patch to baluns on the head end.

[Rita77 0]

Have one solution of transmit your analog and ip camera signal at the same time

[survtech 0]

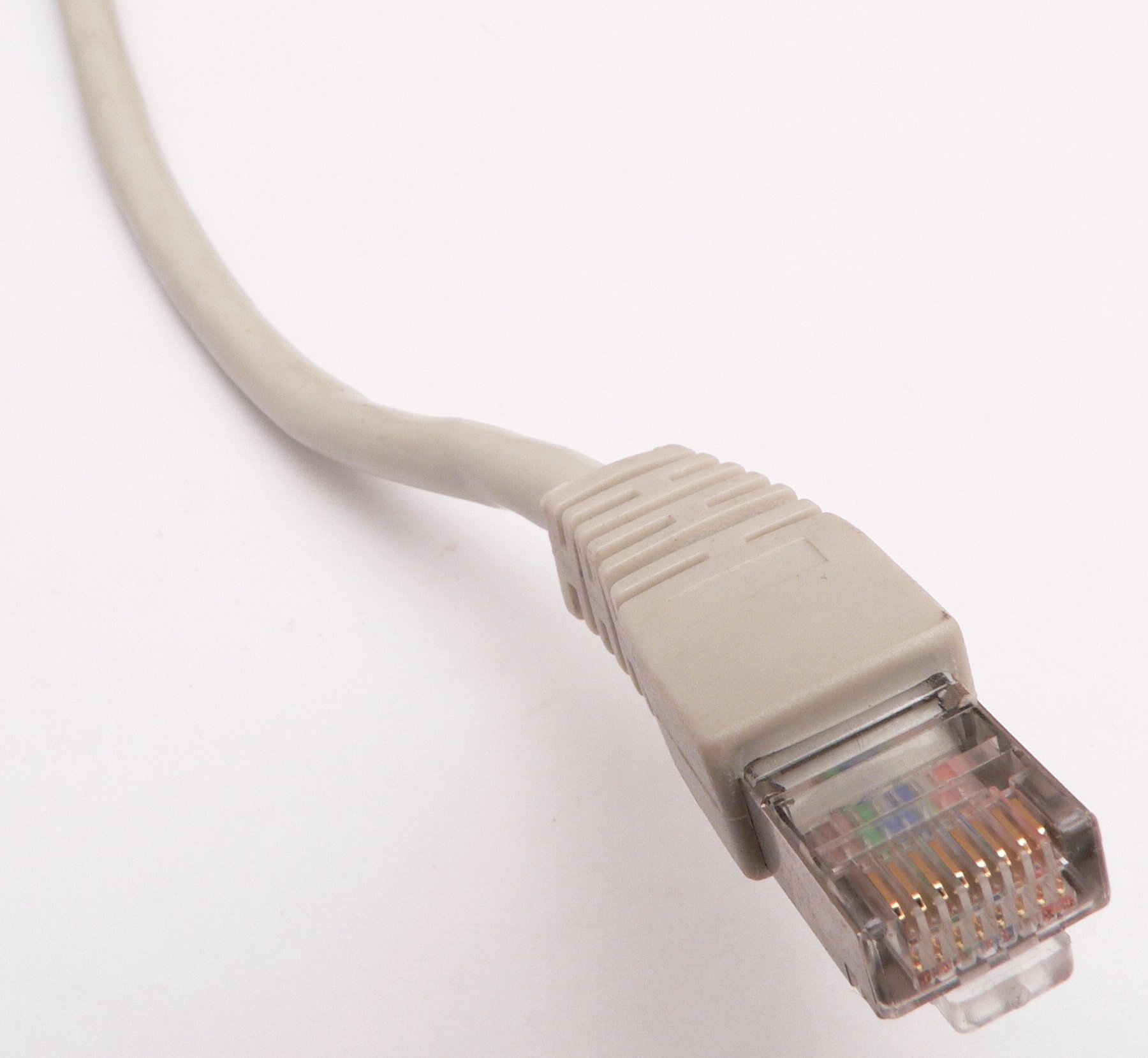

Terminating to RJ45 plugs is usually frowned on. Handmade male RJ45 connections are a common source of problems. Better to terminate to jacks (female) and use M-M patch cables.

[rkninc 0]

Any advice on which panel to use. We are making a design for 48+ camera counts.



Whats the best way to terminate connections on the camera end?



For the analog component of system is their a bnc patch panel?





Terminating to RJ45 plugs is usually frowned on. Handmade male RJ45 connections are a common source of problems. Better to terminate to jacks (female) and use M-M patch cables.

[survtech 0]

Whats the best way to terminate connections on the camera end?

Lots of argument there. Some say terminate with a female and use a patch cable to the camera. Others say it's acceptable to terminate the camera end with a male. You pays your money and you takes your chances.





For the analog component of system is their a bnc patch panel?

Many:



One Visit Media

Hyperline

Markertek

Canare

Do a web search for "BNC Patch Panel" or "Coaxial Patch Panel".

[the toss 0]

For the analog component of system is their a bnc patch panel?

]



Get a bit of aluminium & drill 10mm holes in it.
