strat 0 Posted January 30, 2014 (edited) some version info on the v2.12 Some nice MD features! 4 independent non rectangular detection areas with different colorsEach area has independent parameters, including name, sensitivity, threshold. Each region’s name will shown in the log when motion occurs. pdf: http://strat.net/dahua/IPC-Hx3(2)XX%20V2.212%20baseline%20feature.pdf Not sure what file has been seen on here but latest i will be testing is "General_IPC-HX3(2)XXX_Eng_P_V2.212.0001.0.R.20131224" Latest Version--V2.212•Multiple nonrectangular areas motion detection with different colors •Multiple Browsers supported •Onvifprofile S V12.12 test tool passed •New API protocol V1.37 •DahuaDigital Signature(Dahuafirmware only) •No clip between mainstream and substream •Add location in Overlay •One version , All HX3(2)XX cameras Edited January 30, 2014 by Guest Share this post Link to post Share on other sites
Q2U 0 Posted January 30, 2014 I found EN firmware for my 4300S on this site:http://www.novosec.hu/ Direct link: http://www.novosec.hu/components/com_termektamogatas/downloadfile.php?get=/ftp/download/VIDEOSEC/KAMERAK/IP-KAMERAK/HFW4200S/General_IPC-HX5%284%29XXX_Eng_P_V2.210.0000.2.R.20130821.bin I would not install this firmware without seeing the full distribution package, including readme and compatibility list. Share this post Link to post Share on other sites
MaxIcon 0 Posted January 30, 2014 So it looks like the 4XXX series uses different firmware than the 3XXX series: 2XXX/3XXX series = HX3(2)XXX 4XXX/5XXX series = HX5(4)XXX This makes sense, as the 4300 uses a different sensor and (presumably) CPU than the 3300/3200/2100. I've ordered a 4300S to test, against my better judgement, and will see what firmware it comes with and whether I'll have any better access to firmware updates (probably wishful thinking). Anybody know about English NTSC firmware for the 4300S? Googling the key bits of the firmware name above only gives that novosec site - one result. Share this post Link to post Share on other sites

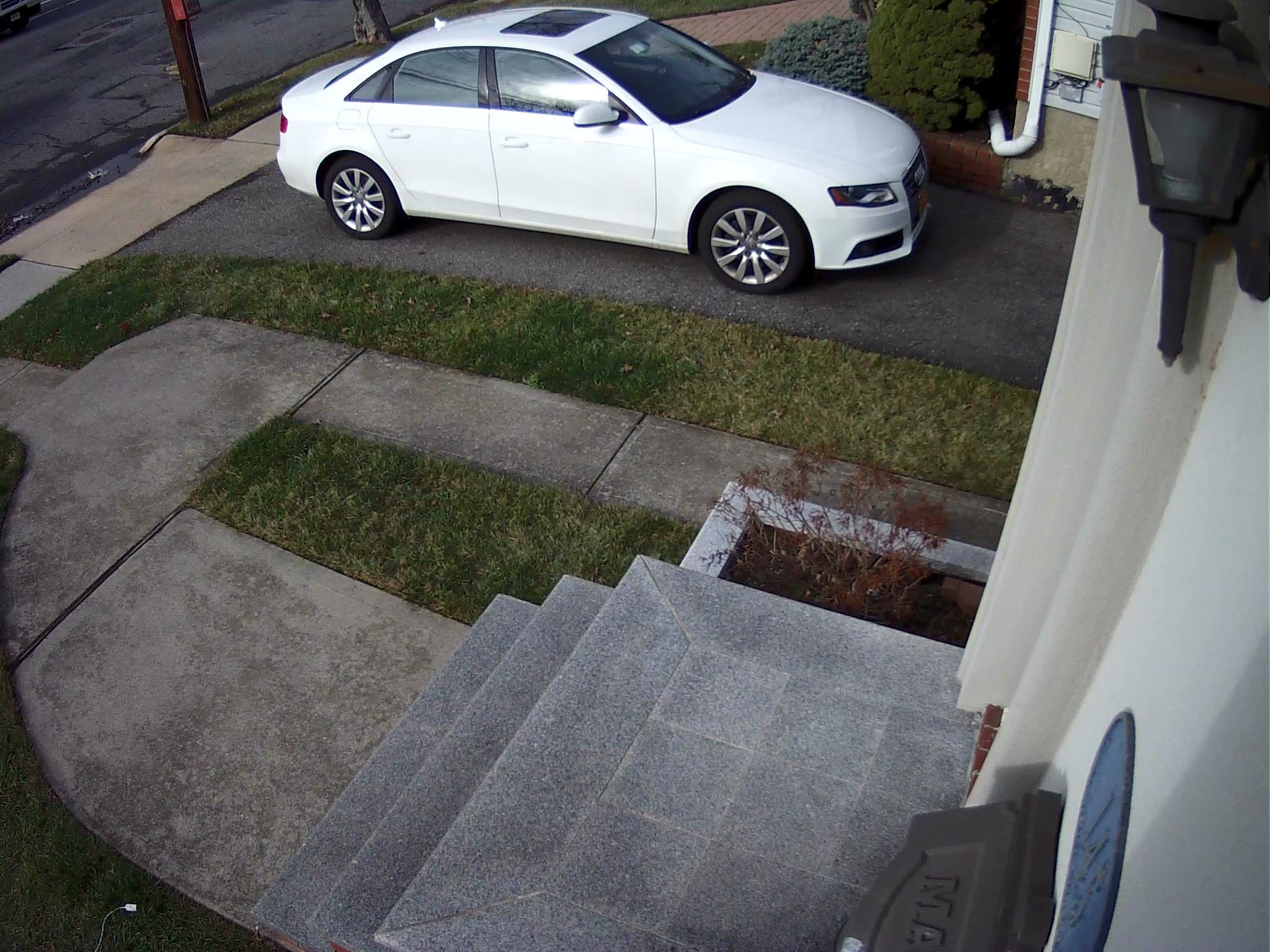

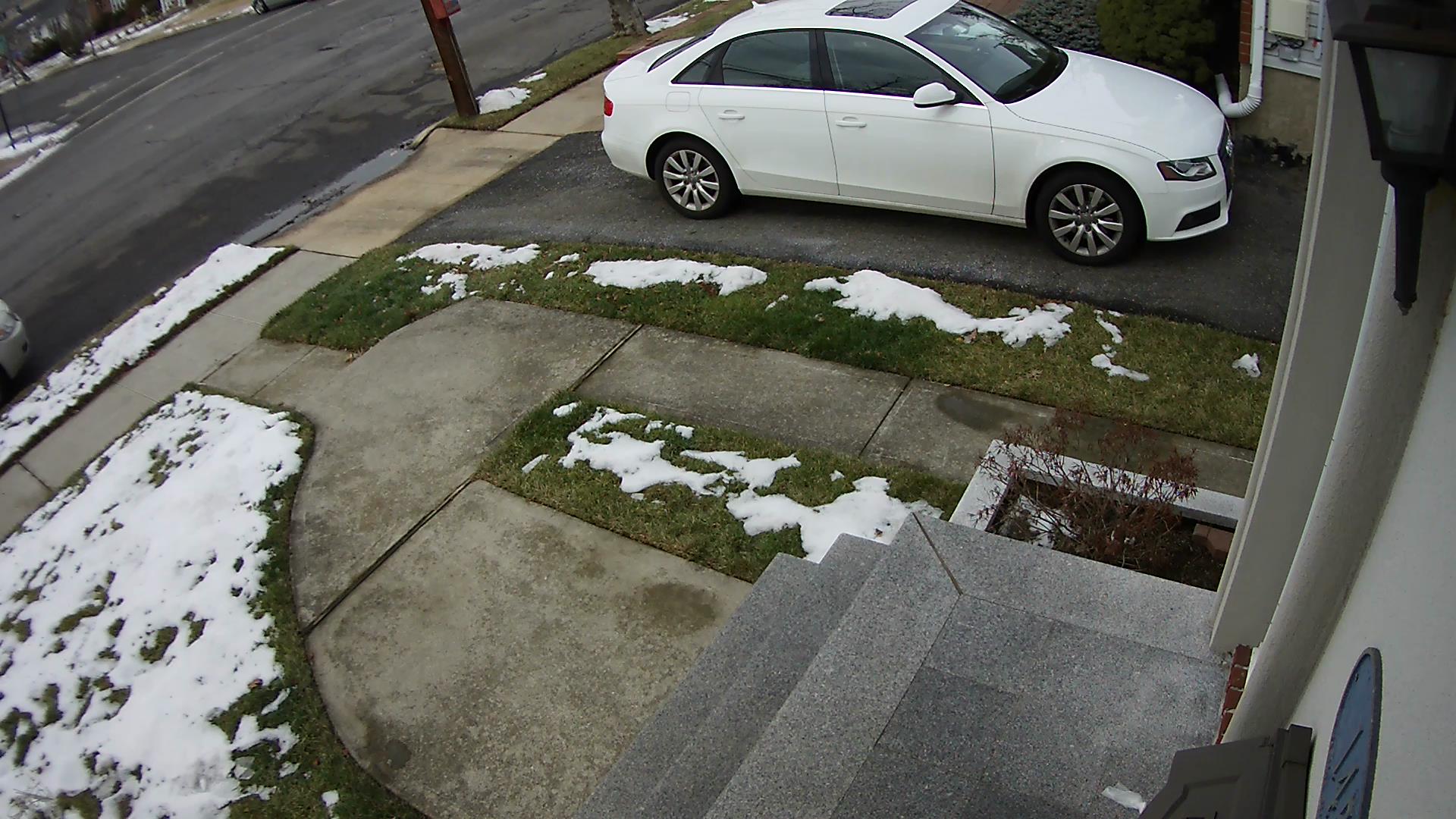

ilkevinli 0 Posted January 31, 2014 MaxIcon let me know what you think about it. I had one to test and I noticed that even though it was a 3.6mm lens, I got less coverage than my other 3.6mm lens cameras. See images. So it looks like the 4XXX series uses different firmware than the 3XXX series: 2XXX/3XXX series = HX3(2)XXX 4XXX/5XXX series = HX5(4)XXX This makes sense, as the 4300 uses a different sensor and (presumably) CPU than the 3300/3200/2100. I've ordered a 4300S to test, against my better judgement, and will see what firmware it comes with and whether I'll have any better access to firmware updates (probably wishful thinking). Anybody know about English NTSC firmware for the 4300S? Googling the key bits of the firmware name above only gives that novosec site - one result. Share this post Link to post Share on other sites
teknologs 0 Posted January 31, 2014 dahua 3216 nvr new version updated... ftp://194.197.92.197/drivers/dahua/NVR-sw/NVR-3XXX/Ver2.616/General_NVR3xxx_Eng_P_V2.616.0000.0.R.20140110.zip Share this post Link to post Share on other sites
andscheptev 0 Posted February 1, 2014 Hello everyone. My IPC HFW2100P after updating the firmware is bricked. The Putty terminal via an RS232 see this picture: Checking DDR......OK UBL Version: 1.43t(DM368 30/5/2012) Oscillator: 24MHZ ARM Rate: 270 MHZ DDR Rate: 216 MHZ BootMode: SPI Starting SPI Memory Copy... DONE U-Boot 1.3.6 (jerry) (May 30 2012 - 11:05:27) DRAM: 128 MB SF: Got idcode 01 20 18 SF: Detected S25FL128P with page size 256, total 16 MB In: serial Out: serial Err: serial Ethernet PHY: GENERIC @ 0x05,id:221513 total gio 2 gio[22]=1 gio[25]=1 Loading... TFTP from server 192.168.254.254; our IP address is 192.168.1.108; sending through gateway 192.168.1.1 Filename 'upgrade_info_7db780a713a4.txt'. Load address: 0x80100000 Loading: WARN: emac_send_packet: No link Retry count exceeded. Failed to get info.txt ==>use default images ## Booting kernel from Legacy Image at 80800000 ... Image Name: Linux-2.6.18_pro500-davinci_evm- Image Type: ARM Linux Kernel Image (uncompressed) Data Size: 1938236 Bytes = 1.8 MB Load Address: 80008000 Entry Point: 80008000 Verifying Checksum ... OK Loading Kernel Image ... OK OK Starting kernel ... Uncompressing Linux............................................................................................................................... done, booting the kernel. # Or such after entering DEBUG STATE: Checking DDR......OK UBL Version: 1.43t(DM368 30/5/2012) Oscillator: 24MHZ ARM Rate: 270 MHZ DDR Rate: 216 MHZ BootMode: SPI Starting SPI Memory Copy... DONE U-Boot 1.3.6 (jerry) (May 30 2012 - 11:05:27) DRAM: 128 MB SF: Got idcode 01 20 18 SF: Detected S25FL128P with page size 256, total 16 MB In: serial Out: serial Err: serial Ethernet PHY: GENERIC @ 0x05,id:221513 total gio 2 gio[22]=1 gio[25]=1 Loading...DHBOOT# BOOT# BOOT# BOOT# BOOT# BOOT# BOOT# **************** Unknown command 'BOOT#' - try 'help' DHBOOT# Сommands described in [http://www.sendspace.com/file/6i3m28] not met ... Tell me, please, what to do next? Share this post Link to post Share on other sites
MaxIcon 0 Posted February 1, 2014 MaxIcon let me know what you think about it. I had one to test and I noticed that even though it was a 3.6mm lens, I got less coverage than my other 3.6mm lens cameras. See images. Definitely different, though that may be due to the different sensor or a different vendor for the 3.6mm lens. Is the bottom image the 4300S? It doesn't look that good compared to the top image, and part of it appears to be the lens quality... I'll measure the FOV when mine arrives - hopefully any day now. Share this post Link to post Share on other sites
MaxIcon 0 Posted February 1, 2014 Сommands described in [http://www.sendspace.com/file/6i3m28] not met ...Tell me, please, what to do next? As far as I know, nobody's figured out how to use the TFTP setup to unbrick a Dahua camera. Their tech support people can do it, but nobody's had much luck getting anything out of them either. Be sure to keep us posted on your progress! Share this post Link to post Share on other sites
Q2U 0 Posted February 1, 2014 Сommands described in [http://www.sendspace.com/file/6i3m28] not met ...Tell me, please, what to do next? As far as I know, nobody's figured out how to use the TFTP setup to unbrick a Dahua camera. Their tech support people can do it, but nobody's had much luck getting anything out of them either. Be sure to keep us posted on your progress! Yo! Check it out! If it becomes well documented, and it works, this guy's a hero... http://www.cam-it.org/index.php?topic=6510 Share this post Link to post Share on other sites
ilkevinli 0 Posted February 2, 2014 Yep. The bottom is the 4300 and the top was the 3200. I wasn't that impressed either, that's why I'm curious to see what you think. MaxIcon let me know what you think about it. I had one to test and I noticed that even though it was a 3.6mm lens, I got less coverage than my other 3.6mm lens cameras. See images. Definitely different, though that may be due to the different sensor or a different vendor for the 3.6mm lens. Is the bottom image the 4300S? It doesn't look that good compared to the top image, and part of it appears to be the lens quality... I'll measure the FOV when mine arrives - hopefully any day now. Share this post Link to post Share on other sites
buellwinkle 0 Posted February 2, 2014 It's not that one is better than the other, it's that they are different. The 3200S uses the Sony Exmor sensor, very nice looking picture from it but the issue I had with it is that it's too contrasty and over saturated which makes a prettier picture if that's your goal, but to me the new Aptina sensor in the 4300S has a naturally wider dynamic range but has a duller, less prettier picture but to me has more value for security. They sell both kinds, so the choice is yours to make, but I can see the value in the 4300S over the 3200S. You can tweak the settings on the 3200S to look more like the 4300S and vice-versa but it won't be 100% the same. For example, you can set WDR on the 3200S but it's done in software, so it won't be quite as good as the 4300S and may actually look duller to achieve the same results. You can set the contrast and saturation up on the 4300S, but will never look quite as good as the 3200S. Since I can't decide, I use Hikvision and ACTi, LOL! Share this post Link to post Share on other sites
ilkevinli 0 Posted February 2, 2014 buellwinkle why do you think the 4300 does not have the same field of view as the 3200 when they were both 3.6mm lens ? They are both made by Dahua, so I find it very odd. It's not that one is better than the other, it's that they are different. The 3200S uses the Sony Exmor sensor, very nice looking picture from it but the issue I had with it is that it's too contrasty and over saturated which makes a prettier picture if that's your goal, but to me the new Aptina sensor in the 4300S has a naturally wider dynamic range but has a duller, less prettier picture but to me has more value for security. They sell both kinds, so the choice is yours to make, but I can see the value in the 4300S over the 3200S. You can tweak the settings on the 3200S to look more like the 4300S and vice-versa but it won't be 100% the same. For example, you can set WDR on the 3200S but it's done in software, so it won't be quite as good as the 4300S and may actually look duller to achieve the same results. You can set the contrast and saturation up on the 4300S, but will never look quite as good as the 3200S. Since I can't decide, I use Hikvision and ACTi, LOL! Share this post Link to post Share on other sites
pelo666 0 Posted February 2, 2014 Images you have uploaded are of different aspect ratio. The upper (3200) is full HD 16:9 and the bottom (4300) is 4:3... What is the size of picture sensor? The lens could be the same, but if the sensors are different you achieve diefferent field of view. Check the tech specs of that cameras what field of view they should have... Share this post Link to post Share on other sites
IPC 0 Posted February 2, 2014 The Eng-NTSC firmware update (General_IPC-HX3(2)XXX_Eng_N_V2.212.0000.0.R.20131206.bin) was successful for both my Dahuas: HDW2100N and HFW3200S. Thanks ilkevinli! Note: TCP/IP settings did not reset (i.e. did not revert back to static 192.168.1.108). I was nervous for a bit when trying to connect to that and it wasn't working! Share this post Link to post Share on other sites
1shot2killz 0 Posted February 8, 2014 Is this the latest [General_NVR3xxx_Eng_P_V2.616.0000.0.R.20140110] firmware for my registrar BCS-NVR1602? Share this post Link to post Share on other sites
szjozsi 0 Posted February 8, 2014 hi does the new hdw-3200 camera work with synology NAS? thanks Joe Share this post Link to post Share on other sites
andscheptev 0 Posted February 9, 2014 As far as I know, nobody's figured out how to use the TFTP setup to unbrick a Dahua camera. Their tech support people can do it, but nobody's had much luck getting anything out of them either. Be sure to keep us posted on your progress! Yo! Check it out! If it becomes well documented, and it works, this guy's a hero... http://www.cam-it.org/index.php?topic=6510 Yes this method works. With some difficulty, but I also restored my dead camera IPC HFW2100. The myth about the invincibility of the DAHUA destroyed!!! Share this post Link to post Share on other sites
andscheptev 0 Posted February 9, 2014 Сommands described in [http://www.sendspace.com/file/6i3m28] not met ...Tell me, please, what to do next? As far as I know, nobody's figured out how to use the TFTP setup to unbrick a Dahua camera. Their tech support people can do it, but nobody's had much luck getting anything out of them either. Be sure to keep us posted on your progress! Yo! Check it out! If it becomes well documented, and it works, this guy's a hero... http://www.cam-it.org/index.php?topic=6510 Yes this method works. With some difficulty, but I also restored my dead camera IPC HFW2100. The myth about the invincibility of the DAHUA destroyed!!! Share this post Link to post Share on other sites
MaxIcon 0 Posted February 9, 2014 Great news - this has been one of Dahua's big weak points! Share this post Link to post Share on other sites
Q2U 0 Posted February 9, 2014 Great news - this has been one of Dahua's big weak points! The only problem with this method that I observed is...it ain't pretty...and it's gonna take MaxIconic ability and experience to pull it off. Other than that...wow...GREAT work fellas. It's documented over yonder. Share this post Link to post Share on other sites
MaxIcon 0 Posted February 10, 2014 MaxIcon let me know what you think about it. I had one to test and I noticed that even though it was a 3.6mm lens, I got less coverage than my other 3.6mm lens cameras. See images. Definitely different, though that may be due to the different sensor or a different vendor for the 3.6mm lens. Is the bottom image the 4300S? It doesn't look that good compared to the top image, and part of it appears to be the lens quality... I'll measure the FOV when mine arrives - hopefully any day now. Here are the FOV measurements on the 4300S. 3MP, 1.3MP, D1 = 72 degrees HFOV, 53 VFOV 1080P, 720P = 67 degrees HFOV, 37 degrees VFOV SXGA = 67 degrees HFOV, 53 degrees VFOV The Dahua website lists 97.6 degrees HFOV for this lens. Hard to say how they could be that far off, but this is Dahua. The marketing people probably used an FOV calculator; hopefully the engineers didn't give them this data. I'll post more detail in another thread when I've got some time to check it out more, but it looks like it's not that big an improvement over the 3300 series. It still appears to have the over-soft shadow compression, but it's been cloudy for days, so no chance to check thoroughly. Likewise, day/night switching is still unreliable (though the IR is controlled by software now). Mine came with 2.210.0000.2.R, build : 2013-08-21, and there's a newer version - 20130911, so I'll update it first before doing any extensive testing. Share this post Link to post Share on other sites
eos 0 Posted February 10, 2014 Likewise, day/night switching is still unreliable (though the IR is controlled by software now). Mine came with 2.210.0000.2.R, build : 2013-08-21, and there's a newer version - 20130911, so I'll update it first before doing any extensive testing. I have several jobs with the same issue of day/night switching, so I put each Dahua camera on it's own schedule to switch manually between day and night. However for no rhyme or reason, some cameras just go back to full time "day". Does the Dahua NVR cause this or is there some sort of software glitch? My authorized rebranded U.S. supplier has been of no help in this. Also no one there seems to know anything about why the motion pattern in each Dahua IP camera is nice and flexible with threshold and sensitivity, the Dahua NVR still has the detect squares and sensitivity from 1-5. Which means changing the detect pattern in the NVR erases the pattern set in the camera and overwrites it with a poor substitute. Do you think the NVR firmware will mesh with the IP camera detect settings at some point? I figure I will never know Any help would be appreciated. Share this post Link to post Share on other sites
coolie11 0 Posted February 11, 2014 dahua 3216 nvr new version updated... ftp://194.197.92.197/drivers/dahua/NVR-sw/NVR-3XXX/Ver2.616/General_NVR3xxx_Eng_P_V2.616.0000.0.R.20140110.zip Do you have the NTSC Version of this Firmware? Share this post Link to post Share on other sites
denisiusmaximus 0 Posted February 11, 2014 (edited) As I remeber latest firmware was 20131206... So.. Edited February 11, 2014 by Guest Share this post Link to post Share on other sites
coolie11 0 Posted February 11, 2014 I was referring to the NVR Firmware. Thanks. Share this post Link to post Share on other sites
