New Camera System - Coax + Cat5e

[Greg1680 0]

Before I begin, please pardon my complete ignorance when it comes to surveillance systems. The only cameras I've ever used were "wirelessly" connected to the home network.



I'm in the process of building a new home and have had wires run to several locations to install hardwired cameras with a DVR. The camera system I bought was from Costco and was a Swann system with 8 cameras (4 dome, 4 bullet). It appears that all cameras have a coax connector for video and also have a connector for DC power. They all also, much to my surprise, have PTZ wires as well. Some also have a yellow video cable as well as the coax cable (presumably for an alternative video option).



My builder ran two wires to each camera location - a coax and a Cat5e. While I'm confident that the Cat5e can be used to run DC power, my question is - do I need to use 2 or 4 wires for the DC, and since the Cat5e appears to have 8 wires - even if I use 4, I should still have 4 left over. Can I then use that to facilitate the PTZ functions?



Any thoughts or suggestions would be greatly appreciated.



Thanks.

[icamera 0]

Probably not necessary to double up pairs unless you have large current draw (IR, PTZ, etc.)



If you do double up you can use a color code, no standard that Iam aware of but you can use one that makes sense to you.



EXAMPLE:



ORANGE -POS

GREEN - NEG

BLUE - VIDEO

BROWN - PTZ RS CONNECTION







Before I begin, please pardon my complete ignorance when it comes to surveillance systems. The only cameras I've ever used were "wirelessly" connected to the home network.



I'm in the process of building a new home and have had wires run to several locations to install hardwired cameras with a DVR. The camera system I bought was from Costco and was a Swann system with 8 cameras (4 dome, 4 bullet). It appears that all cameras have a coax connector for video and also have a connector for DC power. They all also, much to my surprise, have PTZ wires as well. Some also have a yellow video cable as well as the coax cable (presumably for an alternative video option).



My builder ran two wires to each camera location - a coax and a Cat5e. While I'm confident that the Cat5e can be used to run DC power, my question is - do I need to use 2 or 4 wires for the DC, and since the Cat5e appears to have 8 wires - even if I use 4, I should still have 4 left over. Can I then use that to facilitate the PTZ functions?



Any thoughts or suggestions would be greatly appreciated.



Thanks.

[icamera 0]

Also,



you can just terminate the came runs into an RJ45 connection.

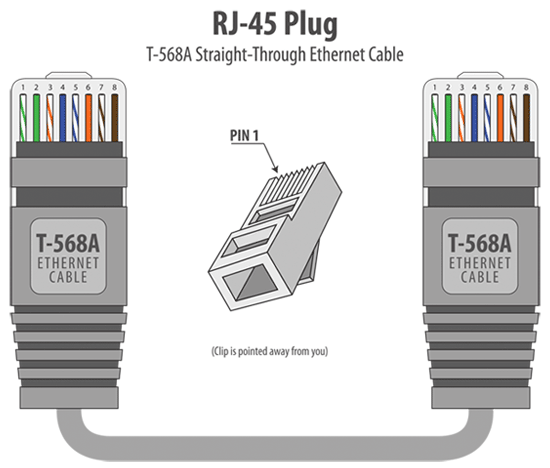

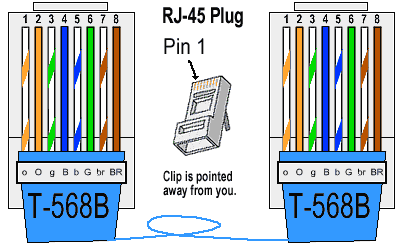

THEN FOLLOW WIRING STANDARD LIKE T-568 or T-568B.







For analog. Balun

http://www.ebay.com/itm/221249637788



FOR IP:



POE





SIMPLE DONE>.....

[Greg1680 0]

Thanks icamera. I think I might leave the camera video as RG6 and use the Cat5e for power. That way, if I ever want to go straight POE - I can just change the Cat5e back to the standard and call it good. Thanks for your thoughts.

[SectorSecurity 0]

How long are these wiring runs and are these cameras 12 or 24 volt?
