dvb 0 Posted July 15, 2015 Hi, When I am at home, DS-2CD2732F-IS and DS-2CD2232-I5 Hikvision cameras send many alert mails. I am trying to enable/disable this by sending scripts to cameras. For exemple, you can stop "MotionDetection" like this : a/ CGI interface to configure get/configure motion detection : curl http://user:password@ipaddress/MotionDetection/1 >resp.xml b/ Edit the resp.xml file downloaded by that command (and save it as motionon.xml). c/ Change the top true to <enabled>false</enabled> and save to motionoff.xml. d/ Then send the command you want like this : curl -T motionoff.xml http://user:password@ipaddress:port/MotionDetection/1 or curl -T motionon.xml http://user:password@ipaddress:port/MotionDetection/1 But I dont't know how to drive other stuffs like : "IntrusionDetection", "SceneChangeDetection", "TraversingVirualPlane" and "FaceDetection" For example, this command doesn't work : curl http://user:pass@IP/SceneChangeDetection/1 >resp.xml % Total % Received % Xferd Average Speed Time Time Time Current Dload Upload Total Spent Left Speed 100 198 100 198 0 0 8818 0 --:--:-- --:--:-- --:--:-- 11000 cat resp.xml cat resp.xml <!DOCTYPE html> <html><head><title>Document Error: Not Found</title></head> <body><h2>Access Error: 404 -- Not Found</h2> <p>Can't locate document: /SceneChangeDetection/1</p> </body> Do you know how we can enable/disable other stuffs ? Thank you. Share this post Link to post Share on other sites
iTuneDVR 2 Posted July 15, 2015 wireshark burpsute Capture your network traffic and you'll see all original xml responde! It's best and the easiest way Or http://oversea-download.hikvision.com/uploadfile/Leaflet/ISAPI/HIKVISION%20ISAPI_2.0-IPMD%20Service.pdf Share this post Link to post Share on other sites
dvb 0 Posted July 15, 2015 Thanks for the tip " title="Applause" /> I put values below in case someone is interested. Working on DS-2CD2732F-IS : ----------------------- Motion Detection => OK curl http://user:password@ip:port/MotionDetection/1 >resp.xml curl -T MotionDetection0.xml http://user:password@ip:port/MotionDetection/1 curl -T MotionDetection1.xml http://user:password@ip:port/MotionDetection/1 ----------------------- Face Detection => OK => plantage cam si modif xml + msg d'erreurs conflit curl http://user:password@ip:port/ISAPI/Smart/FaceDetect/1 >resp.xml curl -T FaceDetection0.xml http://user:password@ip:port/ISAPI/Smart/FaceDetect/1 curl -T FaceDetection1.xml http://user:password@ip:port/ISAPI/Smart/FaceDetect/1 ----------------------- Traversing Virtual Plane => OK => conflits face detect : traversing and virtual plane or intrusion curl http://user:password@ip:port/ISAPI/Smart/LineDetection/1 >resp.xml curl -T TraversingVirtualPlane0.xml http://user:password@ip:port/ISAPI/Smart/LineDetection/1 curl -T TraversingVirtualPlane1.xml http://user:password@ip:port/ISAPI/Smart/LineDetection/1 ----------------------- Intrusion Detection => OK curl http://user:password@ip:port/ISAPI/Smart/FieldDetection/1 >resp.xml curl -T IntrusionDetection0.xml http://user:password@ip:port/Smart/FieldDetection/1 curl -T IntrusionDetection1.xml http://user:password@ip:port/ISAPI/Smart/FieldDetection/1 --------------------- Scene change Detection => OK curl http://user:password@ip:port/ISAPI/Smart/SceneChangeDetection/1 >resp.xml curl -T SceneChangeDetection0.xml http://user:password@ip:port /ISAPI/Smart/SceneChangeDetection/1 curl -T SceneChangeDetection1.xml http://user:password@ip:port /ISAPI/Smart/SceneChangeDetection/1 Share this post Link to post Share on other sites

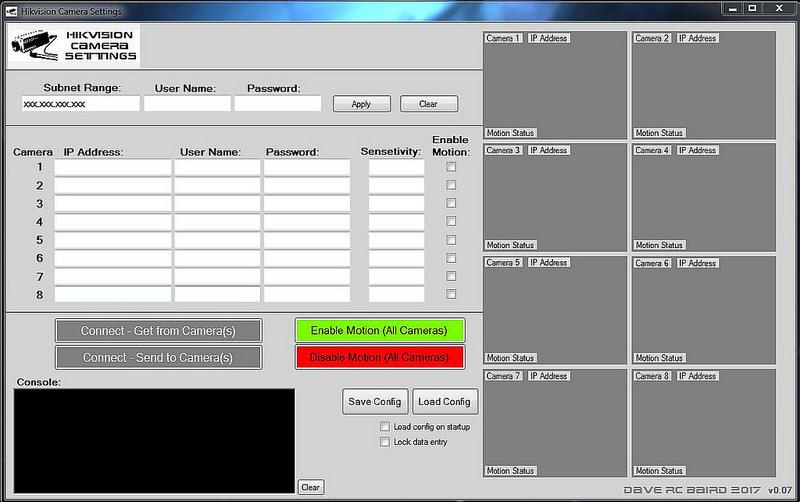

davercbaird 0 Posted July 23, 2017 Hi All, Thanks dvb, this info helped me out. I used the curl method and it worked great. I wanted a windows utility that performed this function so I coded this small application. This allows me to disable my email alerts when I am home so I don't flood my inbox with useless alerts. Here is the link to download if anyone is interested. I plan on adding more features but for now it's functional. https://github.com/davercbaird/Hikvision-Camera-Settings Tested on: Windows 7 64-bit. Uses .net framework Dave Share this post Link to post Share on other sites
GMD99 0 Posted August 20, 2018 I realize that this is a very old thread (2015!) but I am trying to access some of the parameters on my Hikvision cameras and having trouble! I can use the following line in a browser and get the proper reply: http://usename:password@address:port/ISAPI/Smart/LineDetection/1 Here is the reply... <LineDetection> <id>1</id> <enabled>true</enabled> <normalizedScreenSize> <normalizedScreenWidth>1000</normalizedScreenWidth> <normalizedScreenHeight>1000</normalizedScreenHeight> </normalizedScreenSize> <LineItemList size="1"> <LineItem> <id>1</id> <enabled>false</enabled> <sensitivityLevel>60</sensitivityLevel> <directionSensitivity>any</directionSensitivity> <CoordinatesList> <Coordinates> <positionX>645</positionX> <positionY>109</positionY> </Coordinates> <Coordinates> <positionX>28</positionX> <positionY>365</positionY> </Coordinates> </CoordinatesList> </LineItem> </LineItemList> <isSupportMultiScene>false</isSupportMultiScene> <recogRuleType>vectorMode</recogRuleType> </LineDetection> However, when I try this same command from a terminal session on my Windows 10 PC, or a PuTTY session on my Raspberry PI i get this response: <!DOCTYPE html> <html><head><title>Document Error: Unauthorized</title></head> <body><h2>Access Error: 401 -- Unauthorized</h2> <p>Authentication Error</p> </body> </html> I recognize that I am running into an authorization issue... but can anyone shed light on why this is happening? Share this post Link to post Share on other sites
ramin110 0 Posted July 8, 2019 Hi, I want to use the ISAPI for NVR304-16E-B model but when I want to inquire the API I got the message 404 not found. Do I have to enable the API on the device or I'm doing something wrong? I've tried all sort of combination but same error. http://admin:admin@192.168.1.248:80/ISAPI/System/Video/inputs/channels/1/counting/search http://192.168.1.248/ISAPI/System/Video/inputs/channels/1/counting/search http://192.168.1.248/ISAP/System/status thanks. Share this post Link to post Share on other sites
