ACti ACD-2100 and Pelco Spectra III

[monnier 0]

Hi,



I wonder if anyone can help me getting ptz to work.





I got hold of 2 used Spectra III that have been connected to an ACti ACD-2100.



Since the ACD-2100 was password protected I had to reset it.



Now I can't figure out how to use PTZ on the camera. I can get picture.



I've set the ACD-2100 to:

2400 Baud

Port Control 8N1

I've connected the camera Rx+ to Acti Tx+ and Rx- to Tx-



I have:

Xprotect Go

NVR3 Workstation

and QNAP Surveillance Station



I can get picture in all three but I can't figure out how to control the camera



Can anyone help?

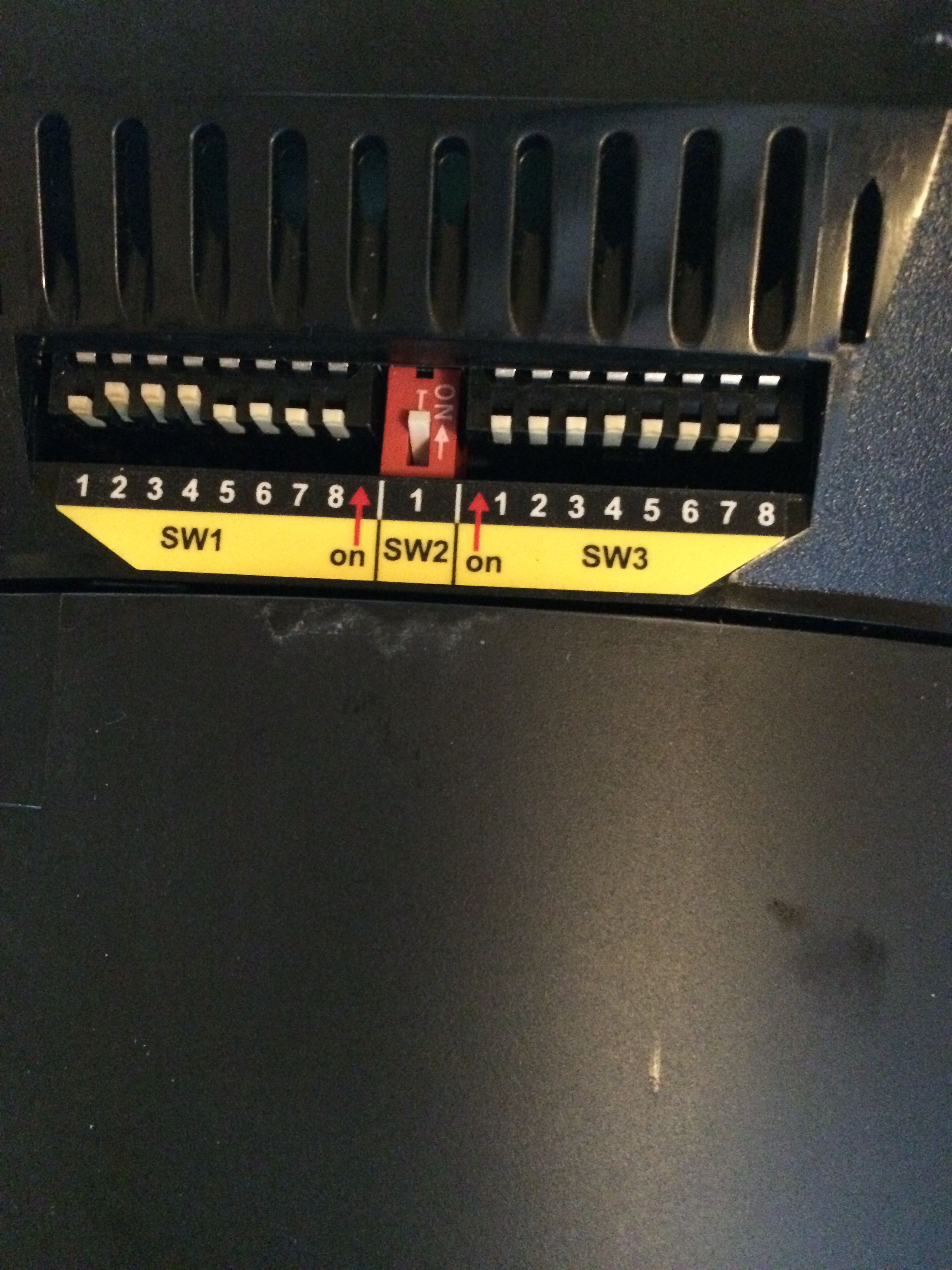

Here is a picture on the switches on the camera when it was connected and working before the ACti reset:







Thanks



//Mikael Monnier

[phillipscctv 0]

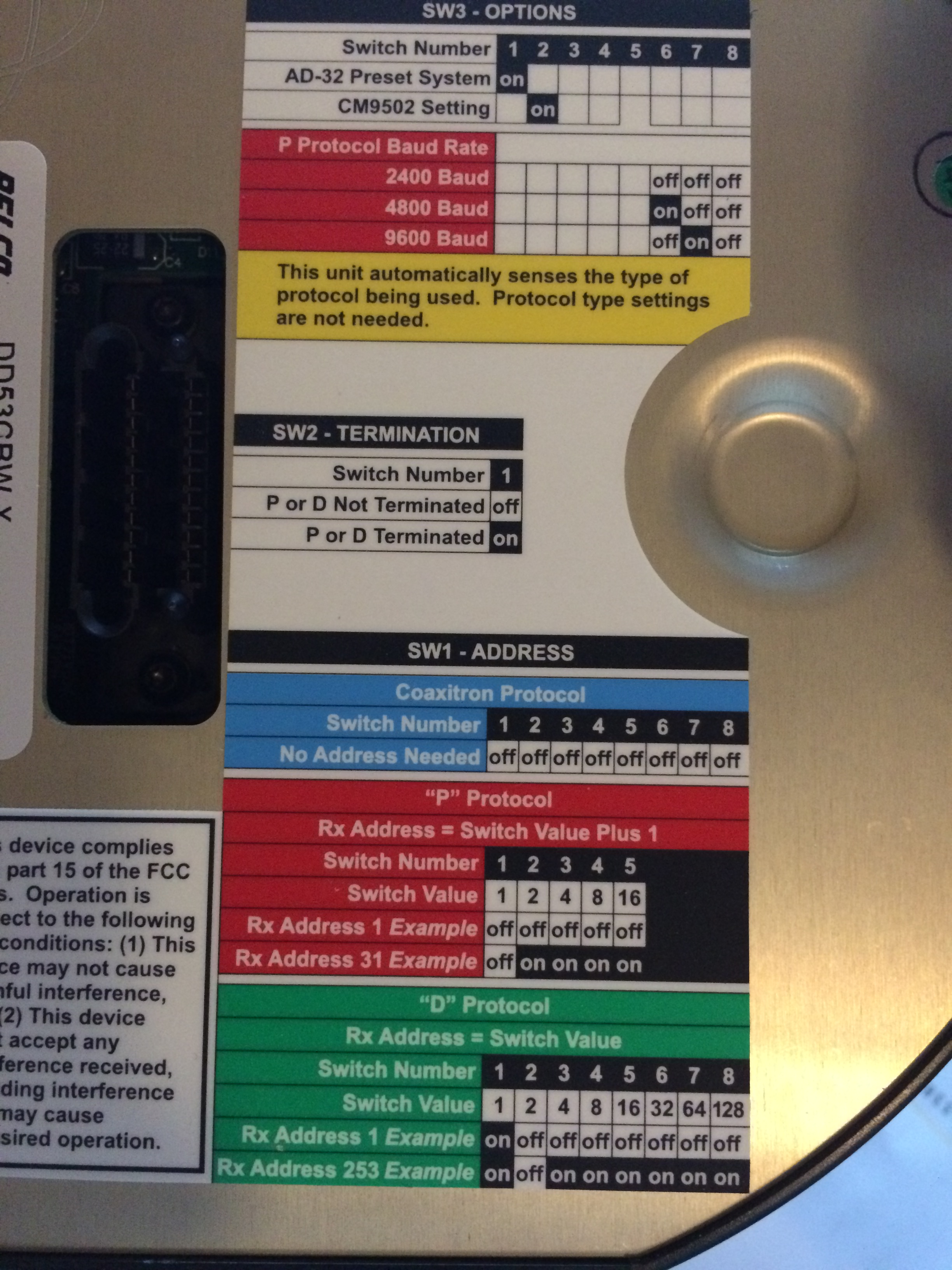

Your Pelco Spectra current settings are wrong, just turn ON SW1, dip switch #1 to ON position. The rest must be on OFF position (2-

and that is address #1



SW3 must be on all OFF position (1- and that is Pelco D @2400 baud rate



Make sure your RS485 data polarity RX+ and RX- are correct.



Your PTZ video output must be connected to input #1 of the DVR to follow the data.



Good Luck!
