Busaninja 0 Posted May 21, 2006 Hi, I need help wiring a Bosch LTC-0335 with a Bosch 6-60mm lens housed in a Bosch enclosure. I can't recall the housing and lens' model number but can get off my butt and retrieve them if needed. 110 AC coming in to a stepdown transformer, the stepdown side of the transformer provides power to the camera and a heating element for the housing. The lead from the lens changes to a multi pin connector then to 4 wires that leads back to the main connecter (multipin) I don't have any problems identifying the pins for the AC input (3 wires) , the video signal out wire (there is a black wire along side of this I assume is a gound); however; I haven't a clue about the 4 wires that originated from the side of the lens. Are the 4 wires intended to be wired to a controller or something else? I appreciate any and all help. Share this post Link to post Share on other sites

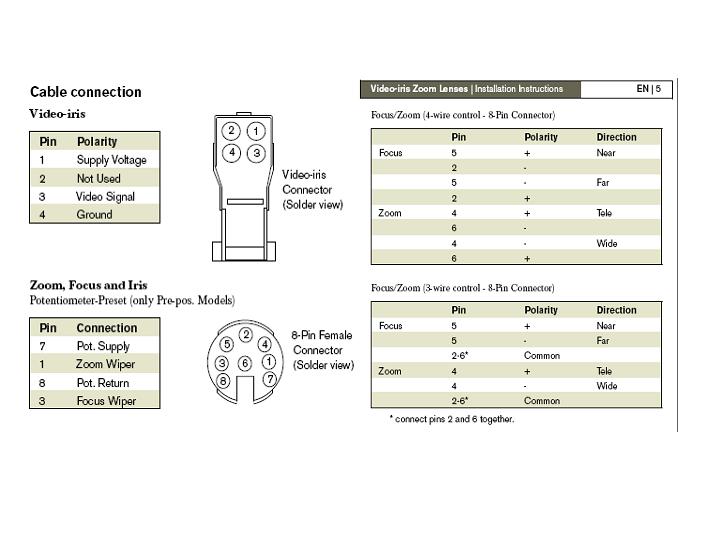

rapid 0 Posted May 21, 2006 What I can tell it's an LTC3384/21 10x zoom lens 6-60mm which you have. These four wires control the Zoom/Focus and would be connected to an LTC 5134 controller or Allegiant Receiver Driver. Hope this helps. Cheers.....Rapid Share this post Link to post Share on other sites
Busaninja 0 Posted May 21, 2006 Rapid, Thank you, I appreciate your help! Mike Share this post Link to post Share on other sites
